I jailbroke my HPE iLO interface on one of my servers (DL360p Gen8), because I added a custom component and this trips an internal policy of HPE servers which sets the minimal run speed of the 8 onboard fans to 40%.
The custom component is a different RAID controller from the one that was integrated, which allows ‘passthrough’ HBA to the OS/Hypervisor that I run. I’ve disconnected the integrated RAID controller and passed the cable that is connected to the 8-drive backpane to this new RAID controller and then configured it to ‘passthrough’ all disks.
This new non-HP component basically turned the server into a constant whirring low noise machine. Being that HP left no user facing option to disable this, people alike to my thinking made a way to exploit/flash the iLO controller to expose itself via SSH. Additionally, they also add a nice binary called fan which lets you edit the fan policies.

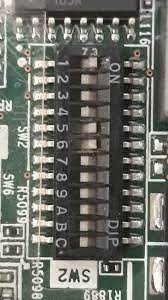

This made it so now it requires the switch 1 on the system maintenance switch of the motherboard to boot into POST
So at boot of this machine, I need to have either itself (post OS boot) or some other machine that pings the iLO controller after expected boots, and automate the sending of the fan commands.
This essentially makes the server run at 40% speeds only for a couple seconds during boot.
Commands I use:
# old SSH algorithms are needed, which need to be specified when connecting
ssh -oKexAlgorithms=+diffie-hellman-group14-sha1 -oHostKeyAlgorithms=+ssh-rsa root@<SERVER_IP>
# ^ host machine terminal
# v iLO server SSH
# once connected
User:root logged-in to <SERVER_HOSTNAME>.<LOCAL-DOMAIN>.<NAME>(<SERVER_IPV4> / <SERVER_IPV6>)
iLO Advanced 2.73 at Feb 11 2020
Server Name: <SERVER_NAME>
Server Power: On
</>hpiLO->
# typing `fan info` should return data, if no data you need to reset iLO:
reset map1 # this RESTARTS iLO and RESETS fan configuration values, but also the fan binary needed to interface
# <disconnects since iLO restart, reconnect back in when available)
fan info # returns data
fan pid 01 lo 2000 # set fan 01 to minimum speed of 20%
fan pid 02 lo 2000 # repeat for all fans
# ... wait a bit for the sensors to update and the speed of the fans should slowly fall down to 20%
